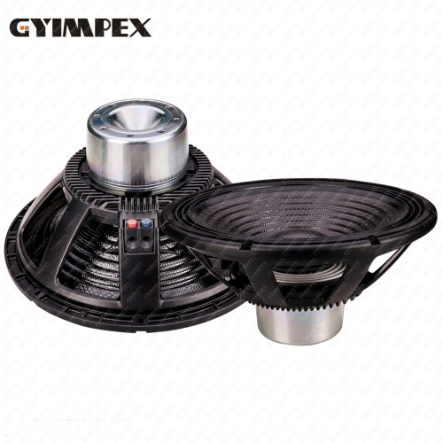

18 inch high quality high power outdoor 115 mm voice coil speaker driver bass

ITEM:R1318NS115

General Specifications

Nominal diameter:466MM/18 inch

Nominal impedance:8 ohm

Nominal Power Handling: 1000W

Continuous Power Handling:2000W

Sensitivity 1W/1M :96dB

 Frequency range: 30 - 1500 Hz

voice coil diameter: 115mm/4.5 inch

Winding Material :Copper

Magnet : Neodymium Ring

Thiele & Small Parameters

Fs (Resonance Frequency ):38Hz

Re (DC Resistance):5.6ohm

Qms(Mechanical Factor ):8.5

Qes(Electrical Factor ):0.37

Qts(Total Factor ):0.36

Vas(Equivalent Cas Air Load):120L

Mms(Effective Moving Mass):331gr

Bl(BL Factor ):34.9T.m

Sd(Effettive Piston Area ):1120cm²

Mounting & Shipping Information

Overall Diameter :466mm

Bolt circle Diameter :442mm

Baffle Cutout Diameter:420mm

Depth:215mm

Net Weight:12kg Shipping Weight:13.8kg
