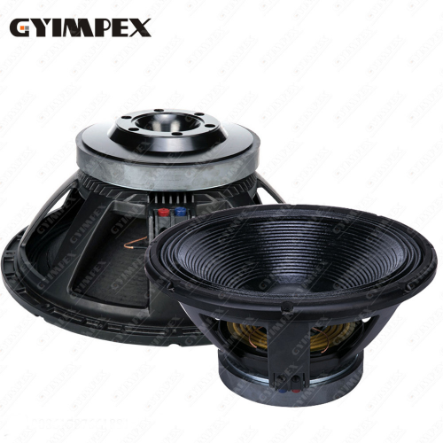

18 inch outdoor powerful pro audio subwoofer speaker

ITEM:R1318115G

General Specifications

 Nominal diameter:463MM/18 inch

Nominal impedance:8 ohm

Nominal Power Handling: 1000W

Continuous Power Handling:2000W

Sensitivity 1W/1M :96 dB

 Frequency range: 30 - 1800 Hz

voice coil diameter: 100mm/4 inch

Winding Material :Copper

Magnet : Ferrite ring

Thiele & Small Parameters

Fs (Resonance Frequency ):31Hz

Re (DC Resistance):5.6ohm

Qms(Mechanical Factor ):7.66

Qes(Electrical Factor ):0.32

Qts(Total Factor ):0.31

Vas(Equivalent Cas Air Load):186L

Mms(Effective Moving Mass):250gr

Bl(BL Factor ):30.5T.m

Sd(Effettive Piston Area ):1235cm²

Mounting & Shipping Information

 Overall Diameter :463mm

Bolt circle Diameter :447mm

Baffle Cutout Diameter:425mm

Depth:220mm

Net Weight:15.8kg Shipping Weight:16.9kg
