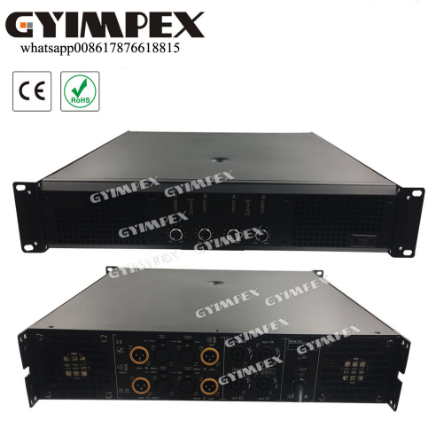

PA01 PA series 4 channels transformer power amplifier

PA series 4 channels transformer power amplifier

Output 8Ohms 1KHz0.1% THD stereo Mode:  600W*4

Output 4Ohms 1KHz0.1% THD stereo Mode:  900W*4

Output 8Ohms 1KHz0.1% THD bridge Mode:  1800W*2

Output 4Ohms 1KHz0.1% THD bridge Mode:  2400W*2

Fuse:  T25A

Slew Rate:  83v/μs

Damping factor:  560:1

Frequency response: (@8Ω) 20Hz~20KHz,±0.1dB

Input Sensitivity:  0.775V,1.0V,1.4V

THD+N: 0.01% @ 8Ω1kHz

power supply :110-230V,50HZ-60HZ

Input Impendence :20KΩ(Balance)/10KΩ(Unbalance)

S/N Rate: ≥106dB

IMD-SMPTE: 0.01% @ 8Ω at rate output

Input Impedance:  30k Ohm Balanced or15k Ohm Unbalanced

Crosstalk at Rated Output 8 Ohms 1kHz:  -70dB

Imput CMRR:  -75dB

Ture studio quality sound transformer power amplifier Line Array/3U class H , transformer professional audio power amplifier /Class H transformer power amplifier

Indicators:  Signal, Protect, Clip, Limited

 Dimensions(mm) : 483W x 492D x 90H

Net Weight:  27KG  .
