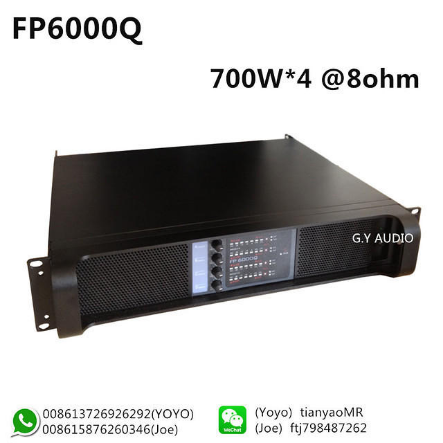

FP6000Q Class TD switching power amp

FP6000Q
FP series Digital Switch Power Amplifier. High switching power amp.

Height :2U ,Class TD, 4 channel lab gruppen FP series SMPS power amplifier for mid high frequency driver/speaker.

Operating amperage: 25-30A
Stereo power 8Ω: 700W*4
Stereo power 4Ω :1300W*4
Stereo power 2Ω: 1500W*4
8ΩBridged Power(RMS): 2500W*2
4ΩBridged Monon Power: 3000W*2
Dimension of carton packing: 575mmx555mmx145mm
Gross weight: 16.5 kg
Height: 2U
Class : Class TD
Type: 4 channel FP switching power amplifier
Frequency response :20Hz-25kHz +-0.5dB
Damping coefficient 500
Input connectors :Combo XLR type,3pin(NEUTRIK)
Link Connectors: XLR type,3pin male(NEUTRIK)
Signal Noise Ration(dB): 110dB
THD+N: (Rated power: 4Ω/KHz)% <0.1%
Output Power: 20-20kHz, 1W with 1 khz
Input gain :23,26,29,32,35,38,41,44dB
Output Connectors: Speakon Connectors(NEUTRIK)
Input Impedance: 20kΩBalanced /10kΩUnbalanced/10kΩUnbalanced
Protection: Short circuit, open circuit, thermal, overload DC, super audio and other protective devices
Power Requirement:200-240V~50-60Hz
Minimum power-up voltage: 180-260V~50-60Hz
