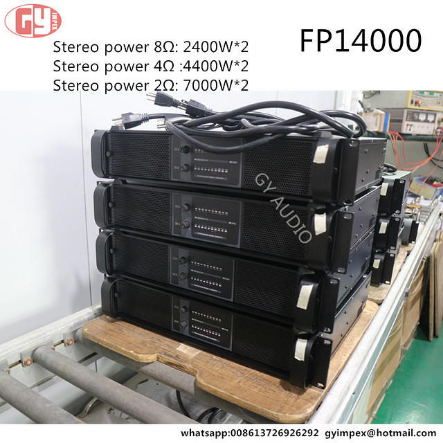

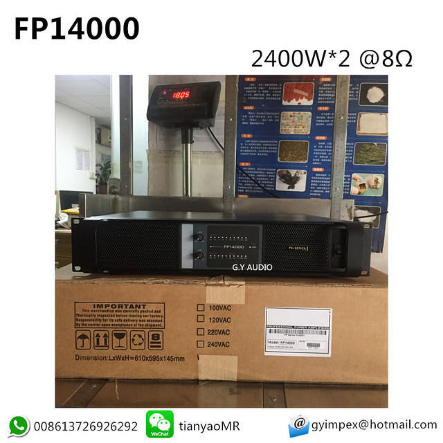

FP14000 Class TD Professional Power Amplifier

FP14000 Class TD switch power Amp

FP14000 2 channels switch power Amplifier

8ΩStereo Power(RMS): 2400WX2
4ΩStereo Power(RMS): 4400WX2
2ΩStereo Power(RMS): 7000WX2
8ΩBridged Power(RMS): 8800W
4ΩBridged Power(RMS): 14000W
Output Power: 20-20kHz,1W with 1 khz
Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W: <0.1%
Signal-to-Noise Ratio: >112 dB
Channel separation (Crosstalk) at 1 kHz: >70 dB
Input Connectors (per channel): 3-pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
Class: TD
Tour Class Protection: ACL,IGM, Auto Ramp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135 V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D): 483×88×396mm
Net weight(kg): 16
Packing dimension: 595×145×610mm
Gross weight(kg): 19
