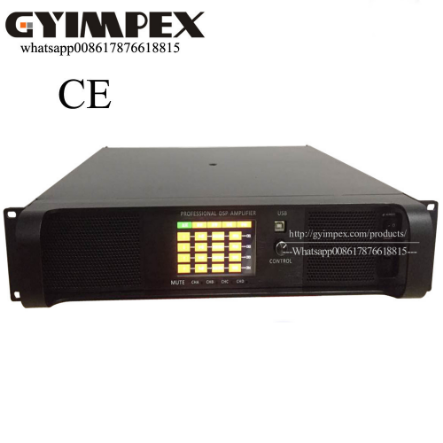

DSP15000Q DSP touch screen 4 channel amplifier

DSP15000Q DSP touch screen 4 channel amplifier

8 Ω stereo power: 4 x1500w
4 Ω stereo power: 4 x2800w
2 Ω stereo power: 4 x3500w
X2500w 8 Ω bridge power: 2
4 Ω bridge power: 2 x7000w
Frequency response (+ 0/0.3 dB, 1 w / 8 Ω) : 20 hz - 34 KHZ
Total harmonic distortion of 20 Hz - 20 kHz 1 w: < 0.1%
Signal to noise ratio: > 112 db
Channel separating degree (crosstalk) 1 kHz: > 70 db
Input connector: female XLR
Output connector: Speakon
Input impedance: 20 k Ω balance
Level regulation: front panel potentiometer, from minus infinity to 0 db
Cooling method: stepless speed fan, air flow by the former to the later
Power amplifier protection way: short circuit, open circuit, dc voltage, overheating, rf, ultra-low frequency protection
amplifier size :510mm *90 mm*480 mm
Packing size:580mm*180 mm*560 mm
net weight: 15kg. Gross weight: 17 kg
