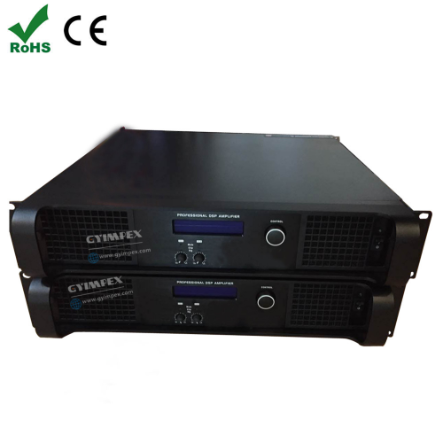

DSP14Q 2 channel DSP POWER AMPLIFIER

DSP 2 channel power amplifier

 Germany: IMPORTED DFM DSP with FIR processor, 2 channel power amplifier

Port : RJ45

Frequency response 10HZ-34kHZ(+/-0.1dB)

8ΩStereo Power(RMS): 2400WX2
4ΩStereo Power(RMS): 4400WX2
2ΩStereo Power(RMS): 7000WX2
8ΩBridged Power(RMS): 8800W
4ΩBridged Power(RMS): 14000W

 THD < 0.1%(20HZ-20KHZ FOR 1W)

THD <0.05%(1KHZ AND 1dB below clipping)

Damping coefficient >500

Signal Noise Ration >120dB

Output socker:NEUTRIK Speakon connector

 Input socket: NEUTRIK Combo XLR type,3pin

 Link socket: NEUTRIK XLR TYPE,3 PIN MALE

 Impedance 20kΩ balanced /10kΩ unbalanced

protection :Overload DC, short circuit ,open circuit, thermal, super audio protection

Power require  90V-265V/50HZ-60HZ

Size: 410mm*483mm*88mm

Weight: 18kg
