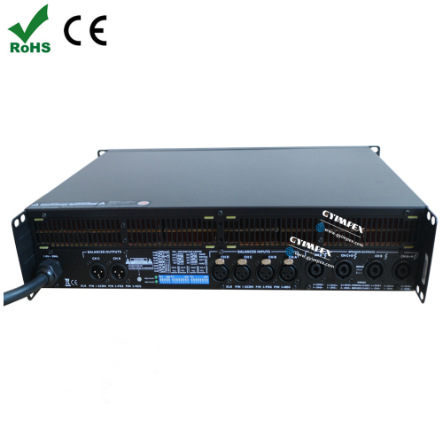

10K CLASS TD 4 CHANNEL POWER AMPLIFIER

ITEM: 10K

4 channels  Class TD Switch power amplifier

8ΩStereo Power(RMS): 1300WX4

4ΩStereo Power(RMS): 2100WX4

2ΩStereo Power(RMS): 2500WX4

8ΩBridged Power(RMS): 4200WX2

4ΩBridged Power(RMS): 5000WX2

Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz

Output Power: 20-20kHz, 1W with 1 khz

THD 20 Hz - 20 kHz for 1 W: <0.1%

Signal-to-Noise Ratio: >112 dBA

Channel separation (Crosstalk) at 1 kHz: >70 dB

Input Connectors (per channel): 3-pin XLR, electronically balanced

Output Connectors (per channel): Binding Posts 2-pole

Tour Class Protection: ACL,IGM, Auto Ramp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input

Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135 V selectable

Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

Input impedance: 20 kOhm

Level adjustment (perch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB

Dimensions (W×H×D): 483×88×396mm

Net weight(kg): 15kg

Packing dimension: 560×180×500mm

Gross weight(kg): 18kg
